S9 Series Combines

S9 Series Combines

Highlights

  • 390 bu Grain Bin Capacity
  • Two-Stage Cleaning Process
  • Low Loss Levels
  • Reduced Compaction
  • Simplified Serviceability

Class Size

VII, VIII

Rated Horsepower

375-430 HP

Maximum Boost

451-471 HP

Unload Rate

4.0 bu/sec

Weight

14,615 kg

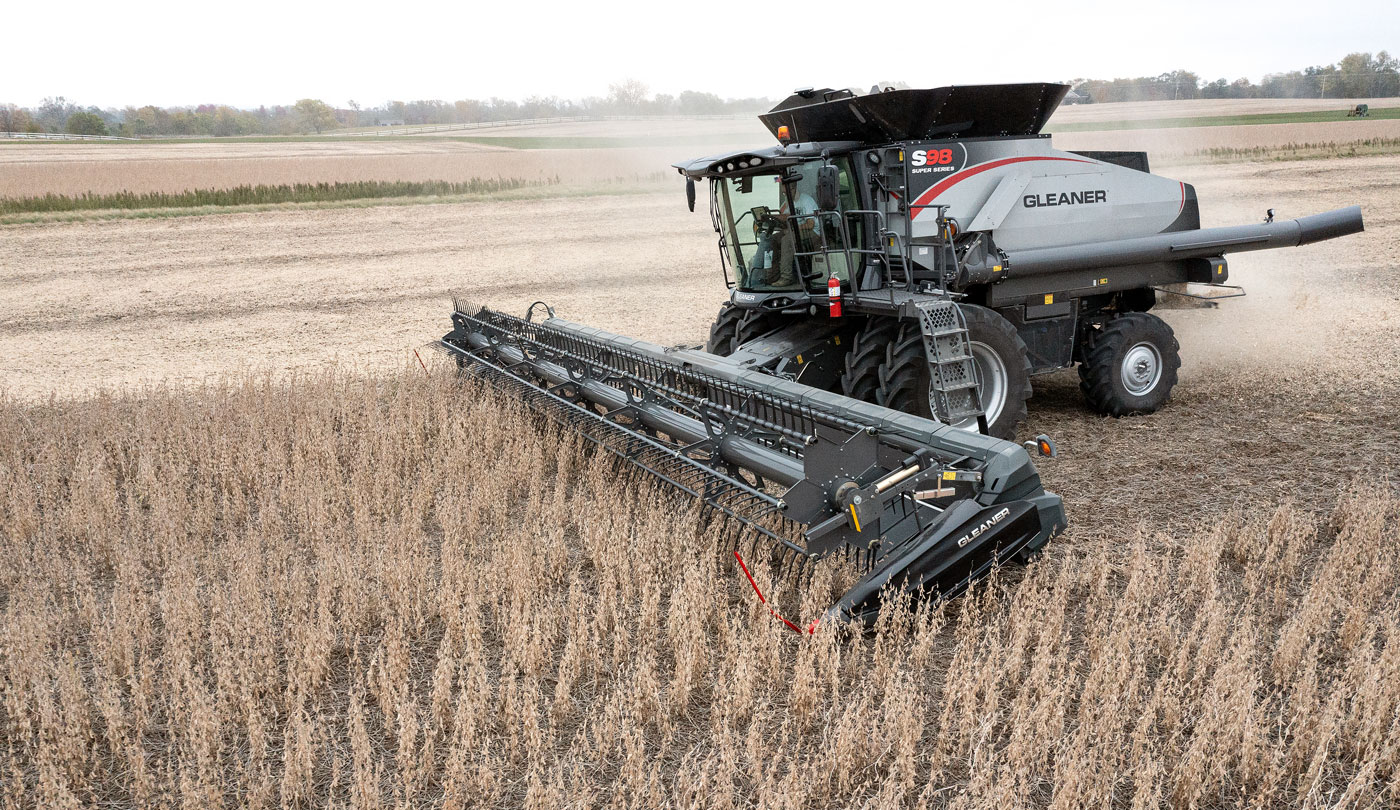

S9 Super Series Combine

Built Different

The S9 Series is the culmination of a century of unique design and performance. The Gleaner® combine design is fundamentally different, offering a level of harvesting performance unmatched by other combines. Building off the strongest attributes of our earlier models, the S9 Series adds even more harvesting performance, new technologies, increased comfort and ultimate convenience. This is a combine designed to propel your business forward.

Features

Vision Cab Operator Environment

Vision™ Cab features enough volume to provide the comfort you demand. Visibility is enhanced with a total glass area of 6.1 sqm and the front glass area is maximized for unmatched visibility. Gleaner operators experience industry-leading comfort and convenience with ergonomic control placement and access.

Feederhouse Optimisation

Unique Natural Flow™ process optimises performance and improves feeding capacity in difficult crop conditions such as heavy canola swaths and green stem soybeans, where uneven feeding can occur. Compared to previous models, the feederhouse floor has been lowered by half an inch and the feederhouse runners and torque tube were raised an inch, resulting in better control of the crop and even feeding.

Automated Drives

S9 Series employs hydraulics for the propel drive and electronics for the gearshift and parking brake, eliminating all cables and linkage, providing total operator convenience.

Technology

Tyton Terminal

Vision Cab features our Tyton™ terminal with four quadrants, easy-to-read Gleaner-specific graphics and simplified navigation through the screens. The Tyton terminal is an intuitive yet powerful tool for making decisions to increase performance in real time.

Live Yield Mapping

Gleaner S9 Series features live yield mapping, providing improved access to farm data to make more informed business decisions, resulting in enhanced productivity and profitability. Gleaner offers two choices of yield monitoring hardware from the factory: AGCO FieldStar® Live or Ag Leader®.

Auto-Guide

S9 Series combines include our Auto-Guide™ guidance system as standard equipment, featuring a NovAtel satellite receiver that comes from the factory set up for WAAS. The system integrates Auto-Guide control into the Tyton terminal and eliminates the need for a separate screen in the cab. Additionally, a Trimble Auto-Guide option is available from the factory to accommodate customers already utilizing Trimble electronics on their operation.

SPECIFICATIONS

Model

Max Boost HP (kW)

SAE Rated HP (kW)

Engine

Transmission

Grain Bin Capacity
bu (L)

Unload Rate bu/sec (L/s)

Base Machine Weight with Tires lb (kg)

S97

451 (336)

375 (279.6)

AGCO POWER 9.8L twin-turbo, 7-cylinder

4-speed electronically shifted w/ proportional hydrostatic

390 (13,743)

4.0 (141)

32,920 (14,615)

S98

471 (351)

430 (320.6)

AGCO POWER 9.8L twin-turbo, 7-cylinder

4-speed electronically shifted w/ proportional hydrostatic

390 (13,743)

4.0 (141)

32,920 (14,615)
